Welding Fume Extractors AIR WELD Industrial Fume Extractor For Welding Fumes
Welding Fume Extractors AIR WELD Industrial Fume Extractor For Welding Fumes

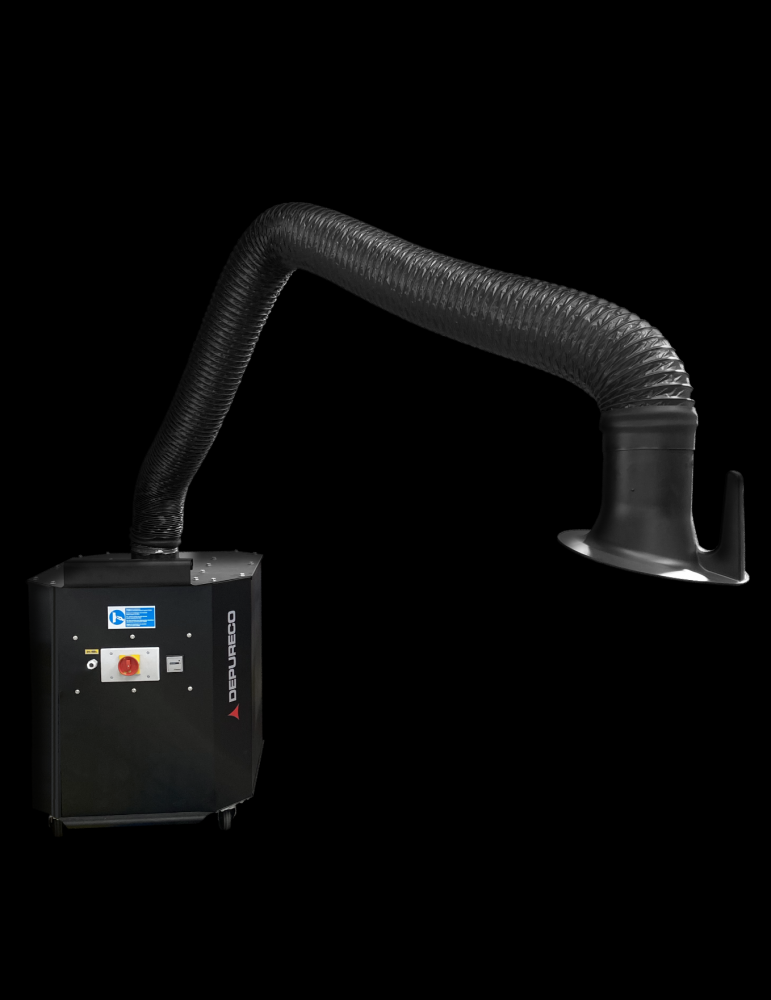

The AIR WELD industrial extractor is a high-performance wheeled extractor fan designed to extract welding fumes easily and in total safety.
- Effective extraction of welding fumes
- 3-meter articulated arm for maximum ease of use
- Filter with large filtering surface for maximum safety
- Counter to indicate when the filter needs changing
Power
1,3 kW
Application
Welding fumes
Technical data
Motor
| Typologies | Electric Fan |
| Power | 1,3 kW - 1,5 HP |
| Frequency | 50/60 Hz |
| Voltage | 400 V |
| Maximum air flow | 1400 m3/h |
| Noise level | 72 dB(A) |
Machine
| Suction mouth | 160 Ø mm |
| Dimensioni | 700 x 750 mm |
| Altezza | 900 mm |
| Peso | 80 Kg |
Filtration
| Tipologia filtro primario | Cartridge |
| Superficie filtrante | 120000 cm2 |
| Classe filtrazione EN 60335-2-69 | M |
| Media | cellulose |
Highlights

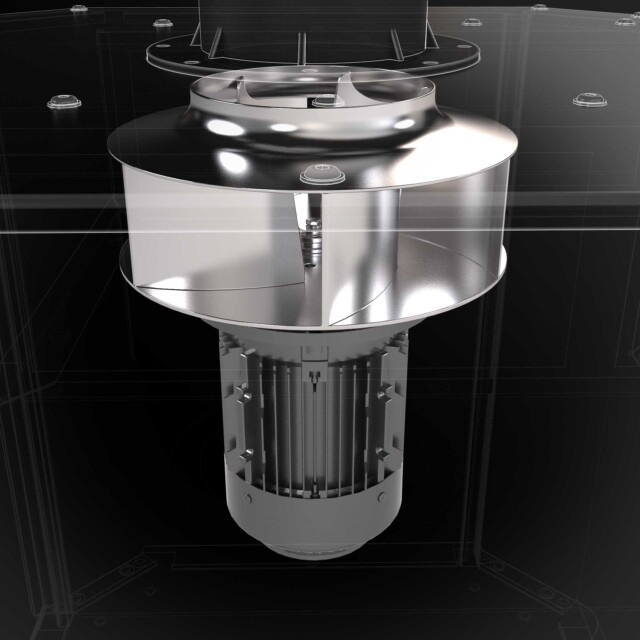

SUCTION UNIT
The suction is generated by a specially designed electric fan to ensure the best air flow rate while maintaining a good vacuum level.
FILTER UNIT
A special very high surface area M-class filter cartridge lined with a regenerable coalescing washing mat captures the remaining microneedles.

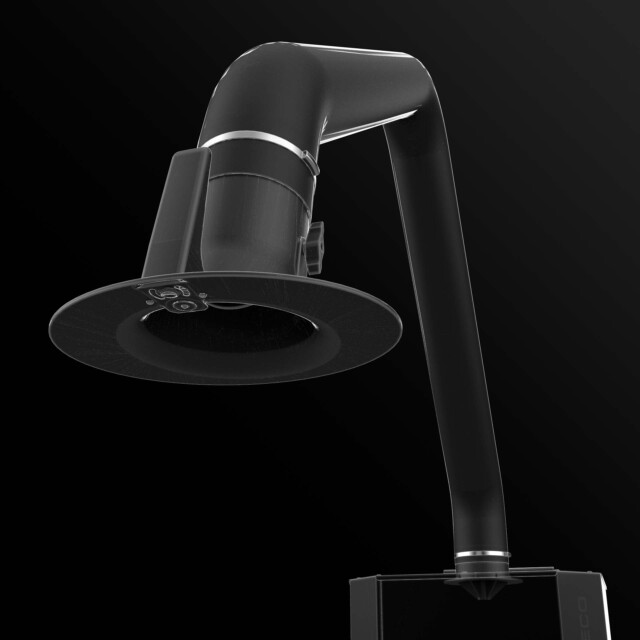

ARTICULATED ARM
A long suction arm facilitates positioning to vacuum directly to the source and avoid dust/fume dispersion into the work environment
Dotazioni
Plug
4-pole industrial plug
POWER SUPPLY CABLE
Wheel with brake
Non-marking wheel with integrated brake
Wheels
Non-marking pivoting wheels
STEEL CONSTRUCTION
Rugged industrial coated steel construction
Options
AVAILABLE FILTER MEDIA
ACB
Active carbon filter
STRUCTURE AND OPTIONS
60HZ
Available in 60Hz version
3 years warranty
Purchasing the replacement filter along with the vacuum
Accessories
P12000
Suction hood (400x50mm)
P12336
Suction arm ø 160mm/L 3m
