The XM TOOLS industrial vacuum cleaner is the ideal solution for vacuuming small particles during grinding, finishing or mechanical processing operations. The vacuum cleaner can be controlled directly from the tool or tool connected to the power tool socket of the vacuum cleaner. The XM TOOLS industrial extractor is equipped with a cellulose filter that allows you to filter welding fumes in total safety. On request it is also possible to install an H14 filter.
- Compact and easy to handle
- Sturdy painted steel construction
- Multi-stage filtration for maximum operator safety
- Possibility of direct remote control from power tool
1,3 kW
Powders, solids and shavings
20 Lt
Technical data
| Typologies | By-pass |
| Power | 1,3 kW - 1,8 HP |
| Frequency | 50/60 Hz |
| Voltage | 230 V |
| Continuous vacuum | 250 mBar |
| Maximum air flow | 190 m3/h |
| Noise level | 72 dB(A) |
| Remote Control | Power tool socket |
| Suction mouth | 50 Ø mm |
| Collection system | Steel container |
| Capacity | 20 Lt |
| Dimensioni | 534 x 471 mm |
| Altezza | 983 mm |
| Peso | 36 Kg |
| Tipologia filtro primario | Cartridge |
| Superficie filtrante | 35000 cm2 |
| Classe filtrazione EN 60335-2-69 | M |
| Media | PTFE coated polyester |
| Sistema Pulizia filtro | Jet Clean |
| Ghigliottina JetClean | Included |
Highlights

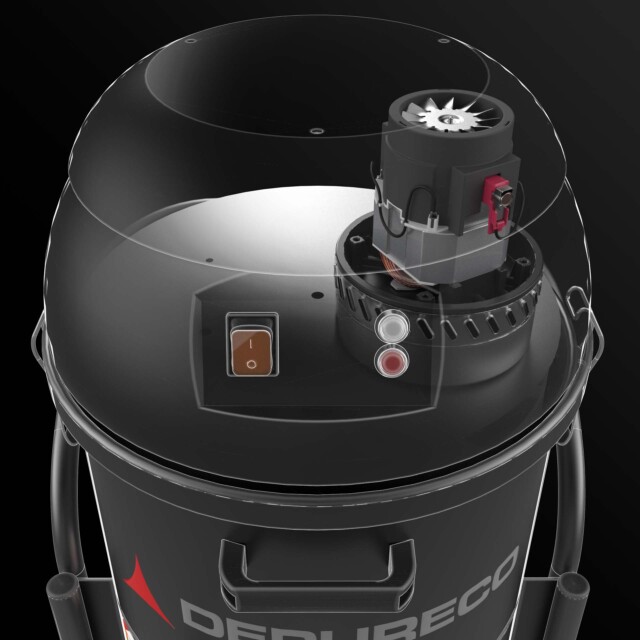

Suction is provided by 1 by-pass motor placed inside a robust casing, with an insulating sponge to maintain a low noise level.
Filtration is ensured by a Class M polyester cartridge filter (filtration efficiency 1 micron) with a high filtering surface area, which guarantees air passage even with a dirty filter.
Equipped with JetClean® filter cleaning system. Due to the different pressure between the outside and inside of the vacuum cleaner, the system generates a flow of air through the cartridge that detaches dust from the surface of the filter, keeping the filter efficient while working and without stopping suction.
Passing the electric cable of the welding machine through the clip, the vacuum unit automatically begins suction when the operator starts welding and ends a few seconds after the welding machine is turned off.
Dotazioni
Options
35.000 cm² filter surface
H13 Class Filter (EN 1822)
Glass fiber
22.000 cm² filter surface
H14 Class Filter (EN 1822)
Glass fiber
